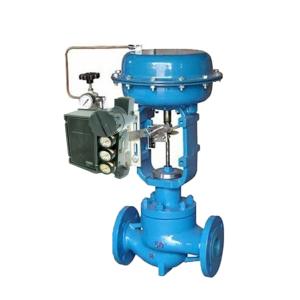

Emerson Fisher Valve Positioner 3620J 3620JP With 67cfr 67CRSR Regulator For Chinese Brand Control Valve

Product Categories

Xiangjing (Shanghai) M&E Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Emerson Fisher Valve Positioner 3620J 3620JP With 67cfr 67CRSR Regulator For Chinese Brand Control Valve

Name: Emerson Fisher Valve Positioner 3620J 3620JP With 67cfr 67CRSR Regulator For Chinese Brand Control Valve
Brand: Fisher Gulde
Price: 1 USD

Brand Name : Fisher Gulde

Model Number : Fisher Gulde 5100

Place of Origin : China

MOQ : 1 Set/Sets

Price : Negotiation

Supply Ability : 100 Set/Sets per Month

Packaging Details : Packing type: cardboard box/non-fumigation wooden box

Application : General

Material : Stainless Steel

Temperature of Media : High Temperature

Pressure : Medium Pressure

Power : Pneumatic

Media : Acid

Port Size : Standard

Structure : Regulating

Standard or Nonstandard : Standard

Port : Main Ports in China

Contact Now

Product Description

emerson fisher valve positioner 3620J 3620JP with 67cfr 67CFSR Filter regulator for chinese brand pneumatic control valves

3610J or 3610JP pneumatic positioners and 3620J or 3620JP electro‐pneumatic positioners are used with diaphragm
rotary actuators and piston rotary actuators as shown in figure 1. 3611JP and 3621JP positioners are used with Fisher
585, 585R, 585C, or 585CR sliding stem actuators
The positioner mounts integrally to the actuator housing and provides a valve ball, disk, or plug position for a specific
input signal. The positioner accepts either a pneumatic or milliampere input signal. Refer to the Type Number
Description for a detailed explanation of type numbers.

3610J, 3610JP, and 3611JP: Standard: 0.2 to 1.0
bar (3 to 15 psig), 0.4 to 2.0 bar (6 to 30 psig), or
split range, see table 8
Adjustable: Zero is adjustable from 0.07 to 1.5 bar
(1 to 22 psig) for standard valve rotations or valve
travels. Span is adjustable from 0.2 to 2.0 bar (3.2 to
28.8 psi) for standard valve rotations or valve travels.
Adjustment locations are shown in figure 13.
3620J, 3620JP, and 3621JP: 4 to 20 mA DC constant
current with 30 VDC maximum compliance voltage.
Minimum terminal voltage is 2.4 VDC at 20 mA.

Direct‐Acting 3610J and 3620J: ±1.5% of output span
Reverse‐Acting 3610J and 3620J: ±0.75% of output span
Direct‐Acting 3610JP and 3620JP: ±1.25% of output
span
Reverse‐Acting 3610JP and 3620JP: ±0.5% of output
span
Hysteresis
3610J: 1.0% of output span
3620J: 0.75% of output span
3610JP: 0.5% of output span
3620JP: 0.6% of output span
Deadband: 0.1% of input span

Specifications

Reference variable	4 to 20 mA
Trave	5 to 50 mm
Opening angles	24 to 100°
Operating Temperature	Standard Temperature
Explosion protection	Intrinsic safety: ATEX, STCC,
Application	Gas& Oil industry

Special features

Reasonably foreseeable misuse The device is not suitable for use outside the limits defined during sizing and by the technical
data. Furthermore, the following activities do not comply with the intended use:

− Use of non-original spare parts

− Performing
service and repair work not described in these instructions Qualifications of operating personnel The device must be mounted,
started up, serviced and repaired by fully trained and qualified personnel only; the accepted industry codes and practices are to
be observed. According to these mounting and operating instructions, trained personnel refers to individuals who are able to judge
the work they are assigned to and recognize possible hazards due to their specialized training, their knowledge and experience as
well as their knowledge of the applicable standards.
